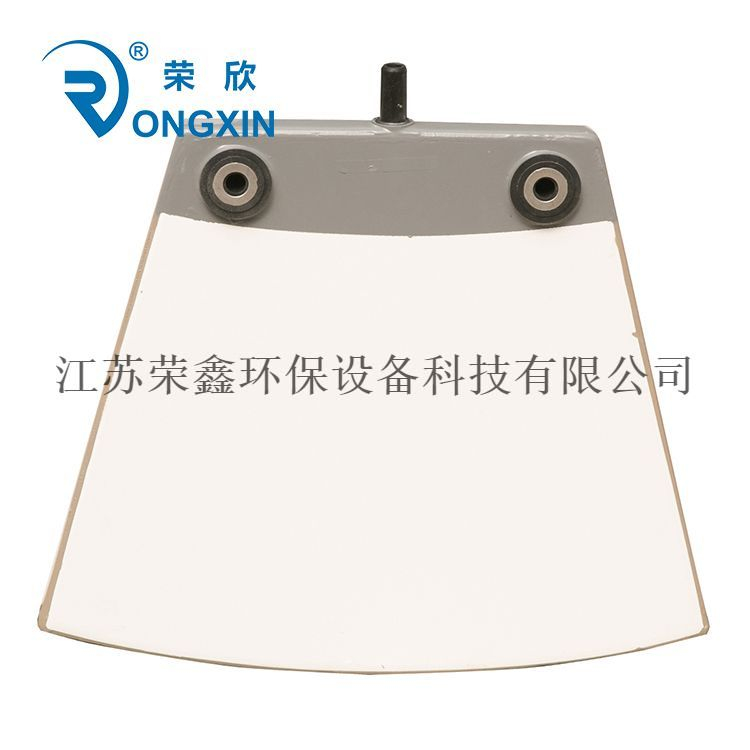

4 square meters ceramic filter plate

Introduction:

RX ceramic filter plate is a large-area porous ceramic filter plate, which is fired using an inorganic membrane preparation process. It has a large filter area, high strength, and uniform pore size. The size of the pore size can be controlled according to actual needs.It is based on alumina and has good acid and alkali resistance. It can use periodic backwashing, pickling and ultrasonic cleaning methods to ensure that the filtration efficiency is not reduced during long-term use.

In response to the obvious decrease in output after multiple ore absorptions, our company has developed a new type of membrane surface with a porosity of 55.60% and smooth inner walls of micropores. During the ore absorption process, very small particles can pass smoothly and better. It reduces clogging. After long-term use and backwashing, the regeneration effect is obvious and the service life is longer, thereby achieving maximum utilization efficiency of the board surface and improving output and efficiency.

Among them, the RX series 8 square ceramic filter plate is a large-area low-energy-consumption environmentally friendly ceramic vacuum filter plate developed and manufactured by our company based on foreign advanced design concepts and suitable for 144 square, 204 square, and 240 square ceramic filters. This ceramic filter plate follows the company's consistent new technology, fully meets the needs of large-area ceramic filters, and ensures the normal operation of the equipment.

Technical Parameters:

1. Filtration flux (pure water pressure 0.1MPa): 1200-1800kg/hm²

2. Air pressure recoil test pressure (wet state): ≥ 0.6Mpa

3. Operating backwash pressure: ≤ 0.3Mpa

4. Ultrasonic combined with chemical cleaning pressure: ≤ 0.2Mpa

5. Membrane pore size range: 1.0µm-15µm

6. Dry weight of processed materials: 0.6-1.6t/hm²

RX series ceramic filter plate (commonly used) specifications and dimensions
